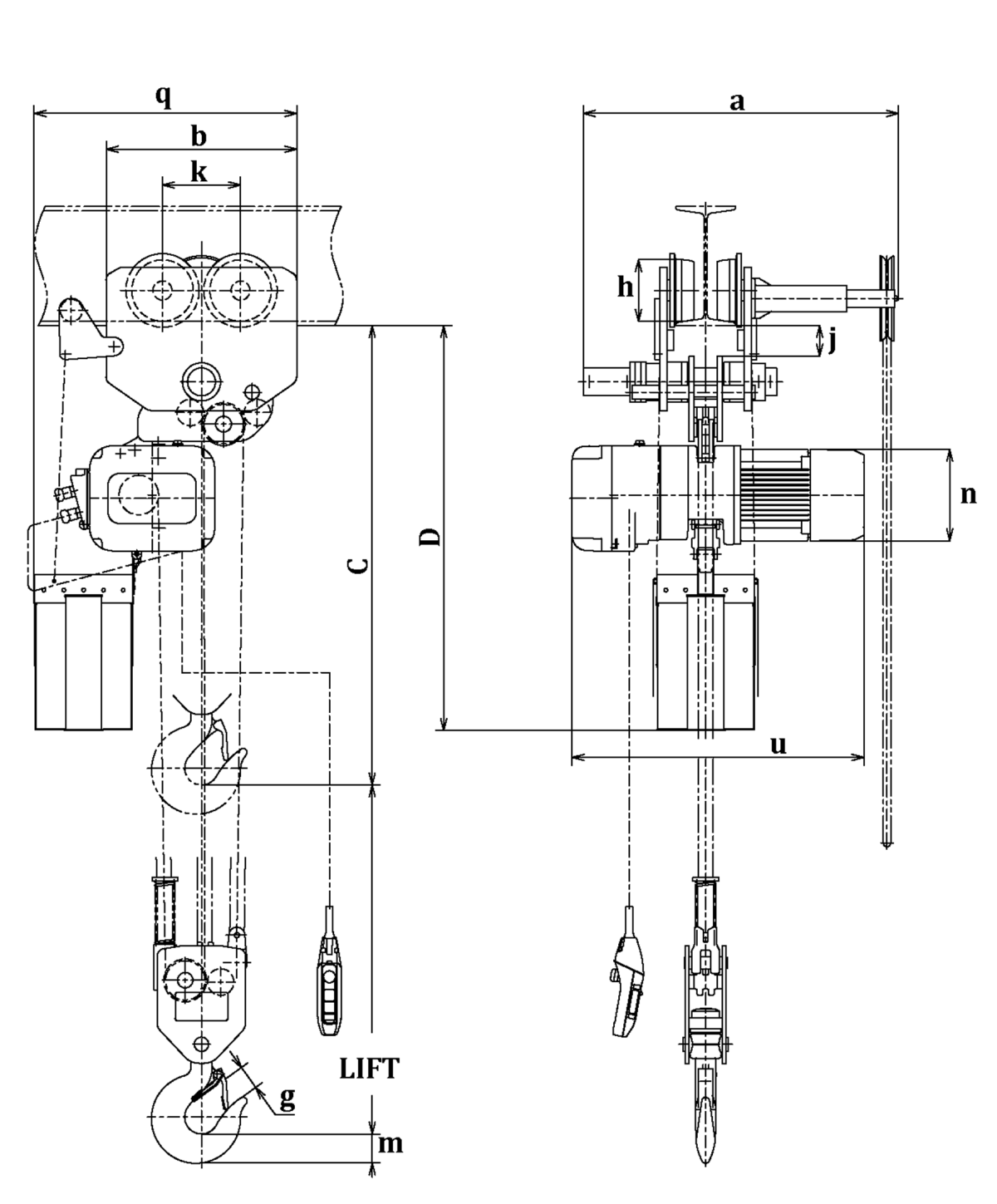

ER2 Line Drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model a b C (in) D g h j k m n q u
7 1/2 ER2SG075S 755 480 46 1230 61 155 87 197 73 248 662 736
10 ER2SG100L 755 480 46.5 1210 80 155 77 197 87 248 718 736
10 ER2SG100S 815 480 46.5 1020 80 155 77 197 87 248 956 798
15 ER2SG150S 964 1000 51.5 1230 86 155 82 520 100 248 1129 798
20 ER2SG200S 964 1000 53 1230 102 155 77 520 112 248 1305 798

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing 220V 440V 575V
7 1/2 ER2SG075S 10 7.5 . 4.7 46 16.4 7.9 6.2 KER2112 3 604 27.5
10 ER2SG100L 10 5.5 . 4.7 46.5 16.4 7.9 6.2 KER2112 4 815 38
10 ER2SG100S 10 11 . 4.7 x 2 46.5 16.4 x2 7.9 x 2 6.2 x 2 KER2112 4 873 38
15 ER2SG150S 10 7.5 . 4.7 x 2 51.5 16.4 x2 7.9 x 2 6.2 x 2 KER2112 6 1245 57
20 ER2SG200S 10 5.5 . 4.7 x 2 53 16.4 x2 7.9 x 2 6.2 x 2 KER2112 8 1371 76
