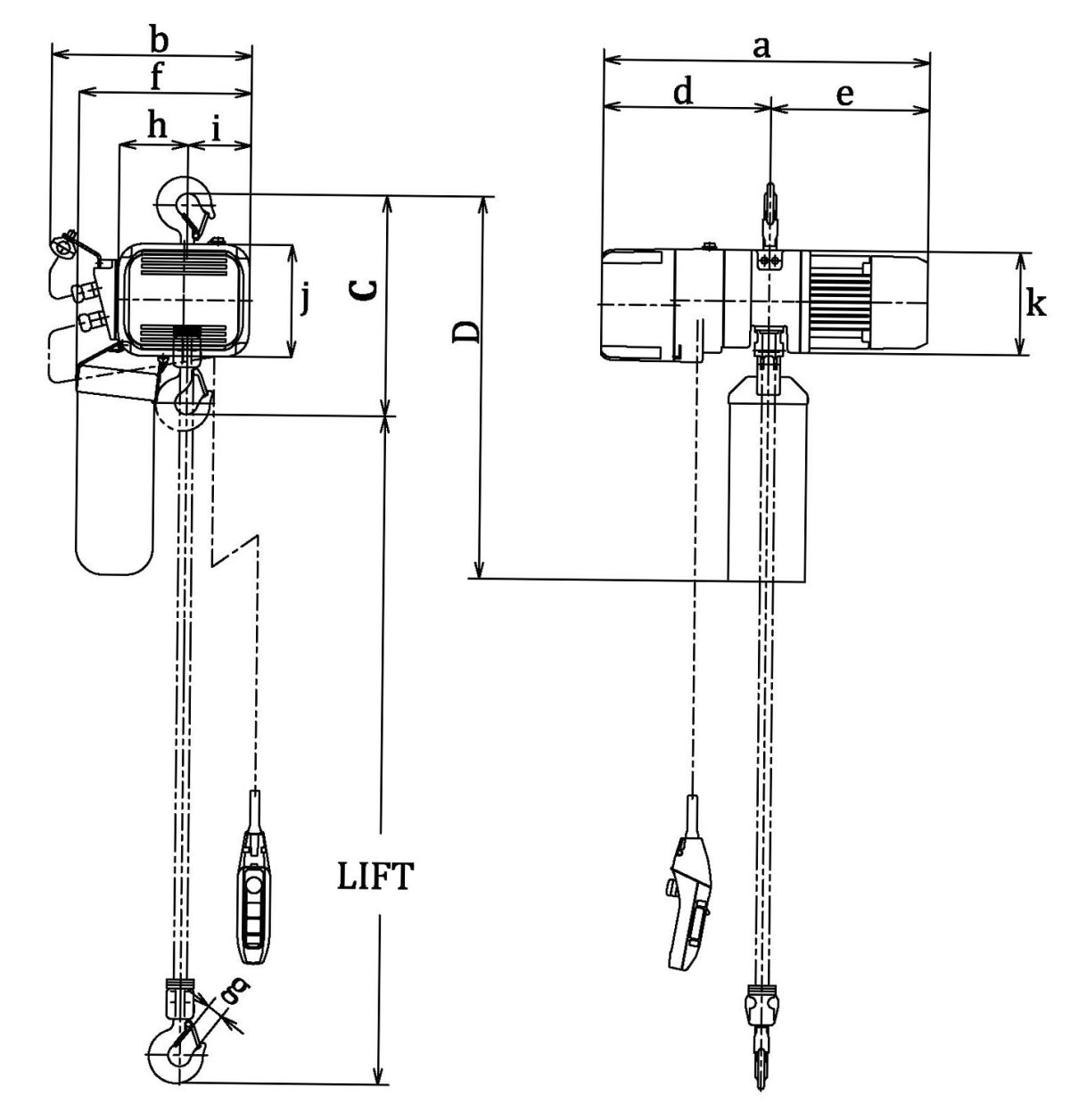

ER2 Line Drawing

Hook Mount - Single Fall VFD; * For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C (in.) D a b d e f g h i j k
⅛ ER2001IH 13.8 520 535 345 276 259 284 27 99 117 167 152
¼ ER2003IS 13.8 520 535 345 276 259 284 27 99 117 167 152
½ ER2005IL 14.6 600 571 348 300 271 283 27 113 106 191 174
½ ER2005IS 14.6 600 568 348 300 268 283 27 113 106 191 174
1 ER2010IL 17 720 614 376 316 298 335 31 129 118 211 192
1 ER2010IS 17 720 623 376 316 307 335 31 129 118 211 192
1½ ER2015IS 20.1 840 710 427 372 338 384.5 34 160.5 137.5 241 230
2 ER2020IL 22.6 840 710 427 372 338 384.5 39 160.5 137.5 241 230
2 ER2020IS 23.2 840 767 427 411 356 384.5 39 160.5 137.5 241 230
2½ ER2025IS 24.6 840 800 445 401 399 437.5 39 173.5 142.5 265 248
3 ER2030IS 33 920 767 427 411 356 397 44 216 82 241 230
5 ER2050IS 36 920 800 445 401 399 439 47 231.5 84.5 265 248

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Lift Speed (ft/min) Hoist Motor H.P. Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing 220V 440V
⅛ ER2001IH 10 55/9 ----- 0.75 13.8 3.6 1.8 KER2043 1 58 1.4
¼ ER2003IS 10 36/6 ----- 0.75 13.8 3.6 1.8 KER2043 1 58 1.4
½ ER2005IL 10 15/2.5 ----- 0.75 14.6 3.6 1.8 KER2060 1 70 2.7
½ ER2005IS 10 28/5 ----- 1.2 14.6 5.1 2.7 KER2060 1 79 2.7
1 ER2010IL 10 14/2.5 ----- 1.2 17 5.1 2.7 KER2077 1 101 4.5
1 ER2010IS 10 27/4.5 ----- 2.4 17 9.1 4.5 KER2077 1 117 4.5
1½ ER2015IS 10 17/3 ----- 2.4 20.1 9.1 4.5 KER2102 1 160 8
2 ER2020IL 10 14/2.5 ----- 2.4 22.6 9.1 4.5 KER2102 1 163 8
2 ER2020IS 10 27/4.5 ----- 4.7 23.2 17.3 8.3 KER2102 1 198 8
2½ ER2025IS 10 22/3.5 ----- 4.7 24.6 17.3 8.3 KER2112 1 220 9.5
3 ER2030IS 10 17/3 ----- 4.7 33 17.3 8.3 KER2102 2 231 16
5 ER2050IS 10 11/2 ----- 4.7 36 17.3 8.3 KER2112 2 282 19
