Manual Trolleys & Beam Clamps

TMH Miniature Manual Trolley

Teenie doesn’t mean weenie.

Pair your ED electric hoist with the TMH mini trolley and improve headroom by more than 20%. Specifically designed to work with the Kito ED hoist, this 5 lb trolley is equipped with molded drop stops, and is remarkably safe and economical.

Designed for the ED Hoist
Specifically engineered for the high-speed ED electric chain hoist, the TMH trolley allows you to lug mount the ED hoist to match the needs of your application.

Extremely Small, Compact Design
Take this trolley anywhere. Its extremely small, lightweight size lets you easily get your hoist installed and running in minutes.

Improved Headroom
Use the TMH trolley with the ED hoist and you’ll see improved headroom by 24 percent when compared to another trolley in the same service class.

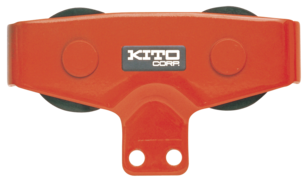

Image of Kito TMH mini manual trolley

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Manual Trolleys & Beam Clamps

TMH Miniature Manual Trolley

CAPACITY
  • ¼ metric tonne
OPTIONS
  • Supplied with two mini cable hangers as standard equipment
BODY
  • Frame: Stamped steel with integrated drop stops. Get strength and rigidity from a lightweight, compact design
WHEELS
  • Composite material for quiet operation and reduced rolling resistance
BEARINGS
  • Maintenance-free sealed bearings increase reliability and reduce required pull force
OPERATION
  • Fits all EDL models up to 240kg and also fits ¼ tonne TCR air hoist. Improves headroom by 25% compared to hook mount

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Manual Trolleys & Beam Clamps

TMH Miniature Manual Trolley

TMH
Miniature Manual Trolley

Specifications

Capacity (tonne) Model Minimum Radius for Curve (mm) Standard Flange (mm) Ship Weight (lbs)
¼ TMH25 600 50 - 100 5

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Manual Trolleys & Beam Clamps

TMH Miniature Manual Trolley

TMH
Miniature Manual Trolley

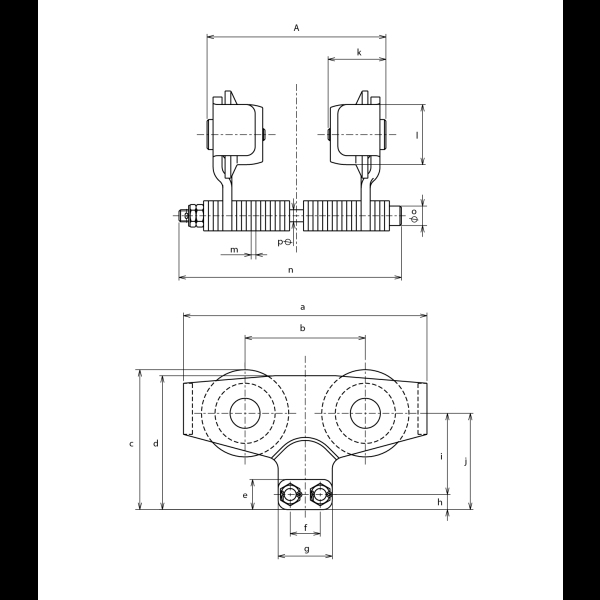

TMH line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model a A b c d e f g h i j k l m n o p
¼ TMH25 162 94-144 80 93 89 20 20 36 10 54 64 38.5 40 3.2 148 13 8
