Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

Work clean with confidence.

For lifting applications in food, beverage, and pharmaceutical industries—where maintaining a pristine environment is critical—the FER2 food-grade electric chain hoist is the one to choose. FDA approved food-grade lubricants used on the load chain and in the gearbox are NSF H1 compliant for safe use in any facility where incidental contact with product is a concern. The standard model also features white epoxy paint, stainless steel /nickel-plated hardware, and a nickel-plated load chain, making the FER2 the perfect choice for contaminant-controlled or corrosive processing environments.

Corrosion-Resistant Nickel-Plated Load Chain
The standard grade 80 nickel-plated load chain on Kito’s electric food-grade hoist is engineered to stand up to corrosion in environments where damp air or steam are prevalent.

Chip-Resistant Epoxy Paint
Avoid contaminants from your lifting equipment. The white, chip-resistant epoxy paint on the FER2 hoist body protects you from debris that could contaminate your processing facility.

FDA Approved Food-Safe Oil, Grease and Lubricants
Pharmaceutical, beverage, and food-associated processing plants require equipment that uses non-toxic lubrication. That’s why the FER2 hoist gives you and FDA approved NSF H1 compliant grease and oil on the load chain and in the gearbox.

Stainless Steel and Nickel-Plated Components
The standard food-grade features on the FER2 include stainless steel and nickel-plated hardware that won’t rust or corrode.

Standard Stainless Steel Bottom Hook Standard Stainless Steel Bottom Hook
The FER2 comes standard with a stainless steel bottom hook, completely eliminating any risk of paint chips or contaminants in your application.

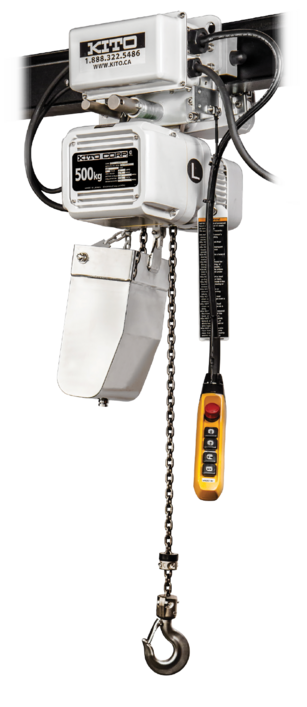

Image of Kito FER2 hoist and trolley

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

CAPACITY
  • ½ to 2 metric tonnes
  • Single Speed, Adjustable 2-speed (220/440 volt), or Dual Speed (575 volt)
STANDARDS
  • CSA approved
  • ASME B30.16
  • ASME H4
  • IP55 dust-tight and watertight
  • Slip clutch to protect the hoist against over travel and overload damage
STANDARD FOOD GRADE FEATURES
  • Food grade oil in gear box
  • Food grade grease on load chain
  • White epoxy paint for hoists, trolleys, hooks, and suspenders
  • Nickel-plated load chain
  • Stainless steel and nickel-plated hardware
  • White Epoxy Bottom Hook
  • Stainless Steel Hook Latch
FOOD GRADE OPTIONS
  • Corrosion Resistant Hook Kit
  • Corrosion Resistant Trolley Kit
  • Nickel-plated suspension shaft and suspender
  • Stainless steel bottom hook, trolley wheels, side guide rollers, chain container, chain spring, limiting plate, and cushion rubber
  • Stainless Steel Chain Container
  • Protective silicone pendant cover
BODY
  • Die cast aluminum frame
  • Completely sealed body for protection from the environment
  • Low headroom profile
LOAD CHAIN
  • Grade 80
  • High-performance nickel-plated load chain, with unique short link pitch for greater resistance to fatigue and wear
  • FDA approved oil
HOOKS
  • Forged carbon steel opens gradually without fracturing under excessive loads
  • Bottom hook swivels 360 degrees
  • Self-closing top and bottom hooks with heavy-duty hook latch
CONTROLS
  • Control Voltage: 110 volts
  • Located on one central electrical panel
  • Simple to operate plug-in connectors
  • VFD: Adjustable, dual-speed, under-the-cover VFD (220 and 440 volt dual speed models)
ERGONOMIC PUSH BUTTON STATION
  • Impact-resistant plastic with molded strain relief to prevent damage from pulling on the push button cord cord
  • IP65 dust-tight and watertight
BRAKE
  • DC current electromagnetic brake stays engaged until powered (Industry leading 10 year warranty)
  • Minimum brake torque of 200% at full load
MOTOR
  • Three phase
  • Standard Voltage: 220/440/575 volts
  • Hertz: 60 hertz
  • Class B
  • Totally enclosed, fan-cooled (TEFC) squirrel cage
  • FDA approved oil
OVERLOAD PROTECTION
  • Friction clutch located in the gearbox between motor and load gear prevents damage to hoist in the event of excessive overloading
OVERTRAVEL PROTECTION
  • Limit switch disables controls when load block reaches upper or lower travel limit
OPERATING CONDITIONS
  • Recommended for -20˚ to +40˚ C and humidity of 85% or lower

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Single Speed - 220V, 440V, 575V
Hook Mount

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Bottom Hook Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing Standard Stainless Steel 220V 440V 575V
½ FER2005L 10 15 ----- 0.75 14.6 17.8 3.4 1.7 1.4 KFER2060 1 73 2.7
1 FER2010L 10 14 ----- 1.2 17 21.2 4.8 2.5 1.8 KFER2077 1 106 4.5
2 FER2020L 10 14 ----- 2.4 22.6 23.4 8.6 4.2 3.3 KFER2102 1 163 8

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Single Speed - 220V, 440V, 575V
Hook Mount

ER2 Hook Mount line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C D a b d e f g h i
1/2 FER2005L 370 490 513 348 242 271 283 27 113 106
1 FER2010L 430 550 589 376 291 298 335 31 129 118
2 FER2020L 575 630 646 427 308 338 384.5 39 160.5 137.5

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Dual Speed - 575V
Hook Mount

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Bottom Hook Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing Standard Stainless Steel
½ FER2005LD 10 14/4 ----- 0.7/0.2 14.6 17.8 1.4/0.9 KFER2060 1 86 2.7
1 FER2010LD 10 14/4 ----- 1.2/0.3 17 21.2 1.7/1.4 KFER2077 1 123 4.5
2 FER2020LD 10 14/4 ----- 2.4/0.6 22.6 23.4 3.2/2.0 KFER2102 1 169 8

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Dual Speed - 575V
Hook Mount

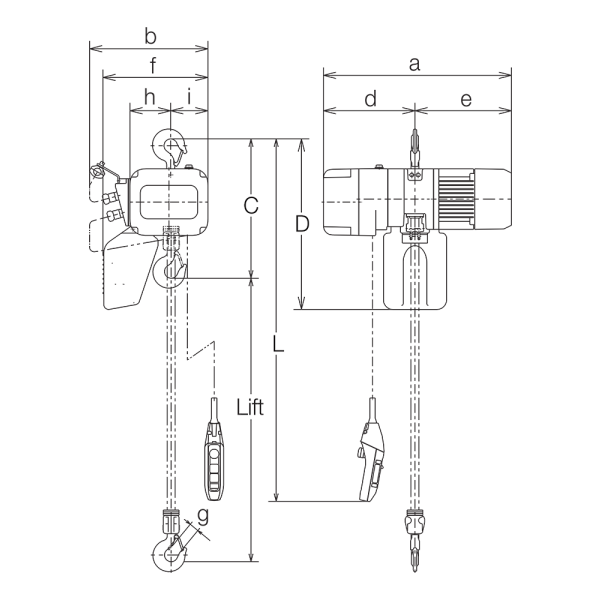

ER2 dual speed line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C D a b d e f g h i
½ FER2005LD 370 490 513 348 242 271 283 27 113 106
1 FER2010LD 430 550 589 376 291 298 335 31 129 118
2 FER2020LD 575 630 646 427 308 338 384.5 39 160.5 137.5

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Adjustable 2-Speed (VFD) Hoist - 220V, 440V
Hook Mount

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Bottom Hook Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing Standard Stainless Steel 220V 440V
½ FER2005IL 10 15/2.5 ----- 0.75 14.6 17.8 3.6 1.8 KFER2060 1 70 2.7
1 FER2010IL 10 14/2.5 ----- 1.2 17 21.2 5.1 2.7 KFER2077 1 101 4.5
2 FER2020IL 10 14/2.5 ----- 2.4 22.6 23.4 9.1 4.5 KFER2102 1 163 8

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Adjustable 2-Speed (VFD) Hoist - 220V, 440V
Hook Mount

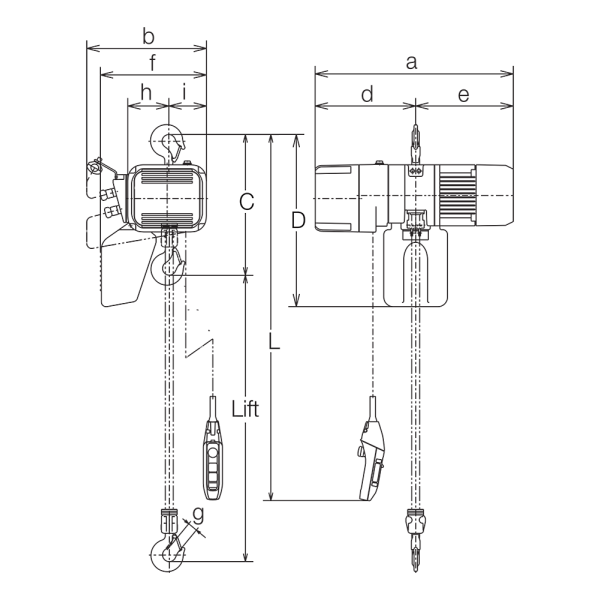

er2 adjustable 2 speed electric hoist hook mount line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C D a b d e f g h i
½ FER2005IL 370 490 513 348 242 271 283 27 113 106
1 FER2010IL 430 550 589 376 291 298 335 31 129 118
2 FER2020IL 575 630 646 427 308 338 384.5 39 160.5 137.5

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Single Speed - 220V, 440V, 575V
Single Speed Motorized Trolley

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Bottom Hook Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing Standard Stainless Steel 220V 440V 575V
½ FER2M005L 10 15 40 0.75 15.6 18.7 6.6 3.3 2.5 KFER2060 1 141 2.7
1 FER2M010L 10 14 40 1.2 17 21.5 8 4.1 2.9 KFER2077 1 172 4.5
2 FER2M020L 10 14 40 2.4 22 23.2 11.8 5.8 4.4 KFER2102 1 246 8

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Single Speed - 220V, 440V, 575V
Single Speed Motorized Trolley

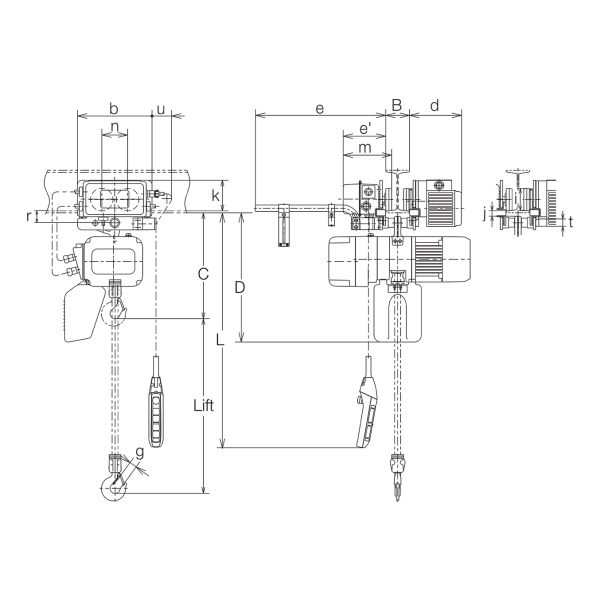

ER2 Single Speed with MR2 trolley line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C D b d e e' g i j k m n r t u
½ FER2M005L 395 510 315 220 515 179 27 95 22 130 205 109 51 31 83
1 FER2M010L 435 550 315 220 515 179 31 95 22 130 205 109 51 31 83
2 FER2M020L 570 630 325 225 520 184 39 110 27 125 212 118 60 36 76

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Dual Speed Hoist (575V)
Single Speed Motorized Trolley

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Bottom Hook Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing Standard Stainless Steel
½ FER2M005LD 10 14/4 40 0.7/0.2 15.6 18.7 2.5/2.0 KFER2060 1 163 2.7
1 FER2M010LD 10 14/4 40 1.2/0.3 17 21.5 2.8/2.5 KFER2077 1 198 4.5
2 FER2M020LD 10 14/4 40 2.4/0.6 22 23.2 4.3/3.1 KFER2102 1 259 8

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Dual Speed Hoist (575V)
Single Speed Motorized Trolley

ER2 dual speed line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Hoist & Trolley Model C D b d e e' g i j k m n r t u
½ FER2M005LD 395 510 315 268 515 179 27 95 22 130 205 109 51 31 83
1 FER2M010LD 435 550 315 268 515 179 31 95 22 130 205 109 51 31 83
2 FER2M020LD 570 630 325 273 520 184 39 110 27 125 212 118 60 36 76

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Adjustable 2 Speed (VFD) - 220V, 440V
Single Speed Motorized Trolley

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Bottom Hook Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing Standard Stainless Steel 220V 440V
½ FER2M005IL 10 15/2.5 40 0.75 15.6 18.7 6.8 3.4 KFER2060 1 143 2.7
1 FER2M010IL 10 14/2.5 40 1.2 17 21.5 8.3 4.3 KFER2077 1 172 4.5
2 FER2M020IL 10 14/2.5 40 2.4 22 23.2 12.3 6.1 KFER2102 1 249 8

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Adjustable 2 Speed (VFD) - 220V, 440V
Single Speed Motorized Trolley

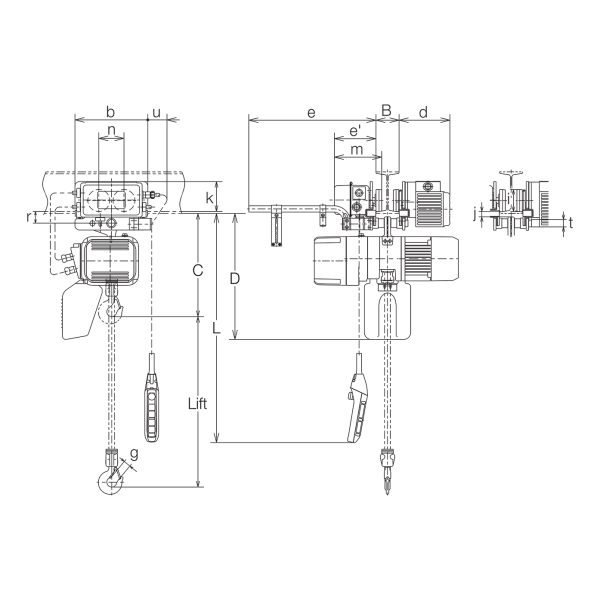

ER2 adjustable 2 speed hoist with motorized trolley line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Hoist & Trolley Model C D b d e e' g i j k m n r t u
½ FER2M005IL 395 510 315 220 515 179 27 95 22 130 205 109 51 31 83
1 FER2M010IL 435 550 315 220 515 179 31 95 22 130 205 109 51 31 83
2 FER2M020IL 570 630 325 225 520 184 39 110 27 125 212 118 60 36 76

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Dual Speed - 575V
Dual Speed Motorized Trolley

Specifications

Capacity (tonne) Model Standard Lift (ft) Speed (ft/min) Hoist Motor H.P. Bottom Hook Headroom (in) Rated Current (amps) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
Hoist Lifting Trolley Traversing Standard Stainless Steel
½ FER2MD005LD 10 14/4 80/20 0.7/0.2 15.6 18.7 2.5/1.7 KFER2060 1 158 2.7
1 FER2MD010LD 10 14/4 80/20 1.2/0.3 17 21.5 2.8/2.2 KFER2077 1 198 4.5
2 FER2MD020LD 10 14/4 80/20 2.4/0.6 22.4 23.2 4.3/2.8 KFER2102 1 259 8

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists

FER2 Food Grade Electric Chain Hoist

FER2 - Dual Speed - 575V
Dual Speed Motorized Trolley

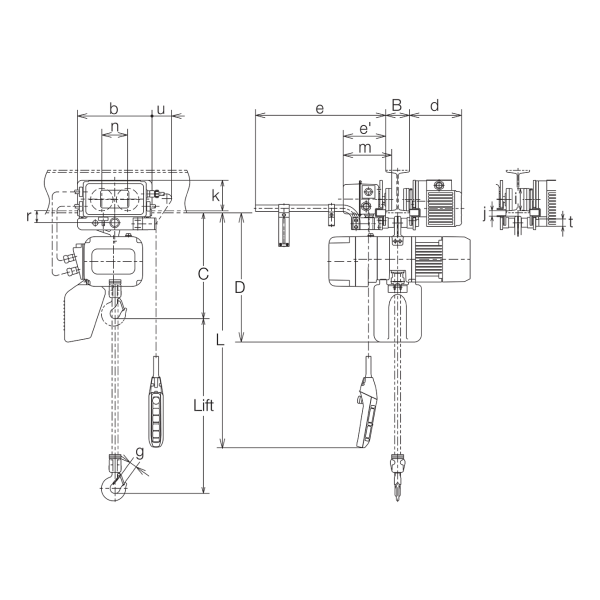

ER2 dual speed hoist with motorized trolley line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Hoist Model C D b d e e' g i j k m n r t u
½ FER2M005LD 395 510 315 268 515 179 27 95 22 130 205 109 51 31 83
1 FER2M010LD 435 550 315 268 515 179 31 95 22 130 205 109 51 31 83
2 FER2M020LD 570 630 325 273 520 184 39 110 27 125 212 118 60 36 76

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Three Phase Electric Chain Hoists
