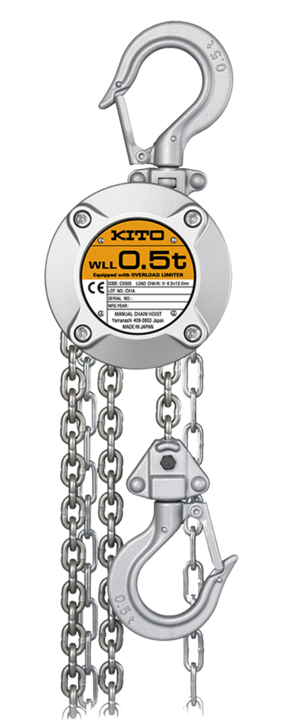

CX Miniature Hand Chain HoistA beauty on the outside, a beast on the inside.With its smooth lines, integrated aluminum body, and impossibly small size, the CX might seem better suited for displaying than working. Not true. The CX is a remarkable engineering achievement in both design and performance, with the ¼ tonne model weighing less than 6 lbs, the ½ tonne model weighing 9.9 lbs, and the 1 tonne model weighing 16lbs. The heat-treated gears and innovative brake system are also sealed to protect against damage from dust and water, and its hooks have tip-supported latches with wide openings to perform jobs big or small.
The World’s Smallest Hand Chain Hoist
Advanced Design Overload Limiter
Tough, Lightweight Aluminum Housing
Wide Top and Bottom Hook Openings
Completely Sealed Gears and Brake
![]() www.kito.ca | 1.888.322.KITO (5486) All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Hand Chain Hoists
CX Miniature Hand Chain HoistCAPACITY
STANDARDS
OPTIONS
BODY
HAND CHAIN
LOAD CHAIN
HOOKS
OPERATION
GEARS
BEARINGS
BRAKE
OVERLOAD PROTECTION
www.kito.ca | 1.888.322.KITO (5486) All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Hand Chain Hoists
CX Miniature Hand Chain Hoist
CX
|
Capacity (tonne) | Model | Standard Lift (ft) | Hand Pull to Lift Full Load (kg) | Chain Pulled to Lift One Meter (m) | Hook Mount Headroom (in) | Load Chain Code | Load Chain Falls | Hand Chain Code | Hand Chain Falls | Ship Weight (lbs) | Weight per Additional 5ft of Lift (lbs) |
---|---|---|---|---|---|---|---|---|---|---|---|
1/4 | CX003 | 8 | 15 | 34 | 8.6 | KLX032 | 1 | KHCX025 | 2 | 5.7 | 2 |
1/2 | CX005 | 8 | 19 | 43 | 10.2 | KLX043 | 1 | KHCX035 | 2 | 9.9 | 3 |
1 | CX010L | 8 | 19.7 | 86 | 14.2 | KLX043 | 2 | KHCX035 | 2 | 16.8 |
www.kito.ca | 1.888.322.KITO (5486)
All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
CX Miniature Hand Chain Hoist
CX
Hook Mount

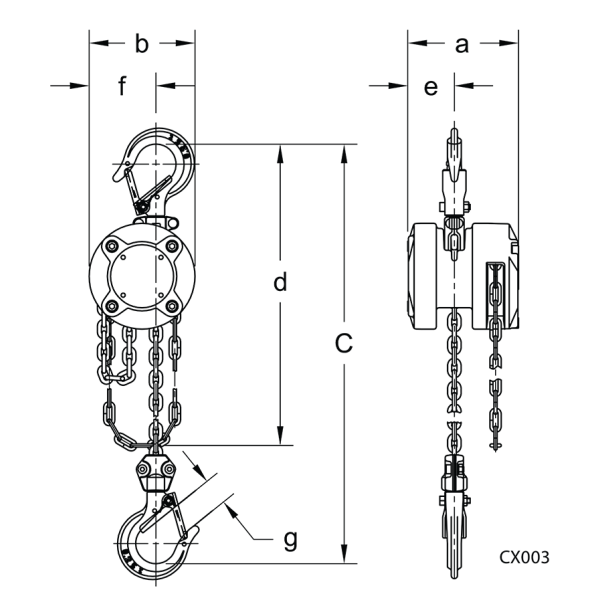

CX 1/4 and 1/2 Metric tonne line drawing
1 load chain fall, 2 hand chain falls; *For informational purposes only, contact Kito for dimensional drawing
Dimensions
Capacity (tonne) | Model | a | b | d | e | f | g |
---|---|---|---|---|---|---|---|
1/4 | CX003 | 88 | 84 | 2100 | 37 | 53 | 21 |
1/2 | CX005 | 103 | 102 | 2600 | 44 | 66 | 24.5 |
1 | CX010L | 103 | 122 | 2610 | 44 | 87 | 29 |
